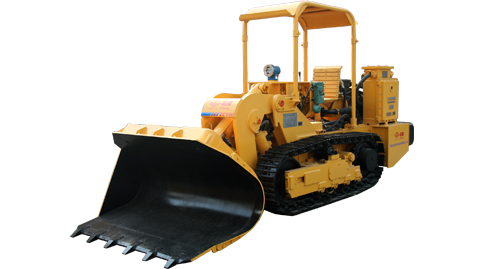

It is a newly devoloped product. it is the up-grade of the original rock dumping rock loadedr, the parameters are greatly improved, and widen the application scope.
Characteristics:
1. the crawler is widen and the teeth of the track shoes is bigger to improve the traveling, climbing, loading, and shovel capacity.
2. the cooling method of the motor is air colded, it is applied in a widen scope and working conditions.
3. change the structure of the suck and return oil system and oil tank, improve the recircle of the oil.
4. adding a mechanical lock to the lifting system, to improve the safety.
|
Model |
unit |
ZCY120R(A) |
ZCY100R(A) |
ZCY80R(A) |
ZCY60R(A) |
ZCY45R(A) |
|
Bucket capacity |
m3 |
1.2 |
1.0 |
0.8 |
0.6 |
0.45 |
|
Bucket width |
mm |
1770 |
1770 |
1770 |
1741 |
1480 |
|
Max. dumping height |
mm |
1650 |
1650 |
1650 |
1650 |
1550 |
|
Max. dumping angle |
o |
55 |
55 |
55 |
55 |
55 |
|
Max. dinting depth |
mm |
600 |
600 |
600 |
600 |
600 |
|
Max. pulling force |
kN |
60 |
60 |
60 |
60 |
50 |
|
Rated pulling force |
kN |
40 |
40 |
40 |
40 |
35 |
|
Traveling speed |
m/s |
0.59 |
0.59 |
0.59 |
0.59 |
0.56 |
|
Min. ground clearance |
mm |
200 |
200 |
200 |
200 |
200 |
|
Gradient |
o |
±16 |
±16 |
±16 |
±16 |
±16 |
|
Ground pressure |
MPa |
0.06 |
0.06 |
0.06 |
0.06 |
0.09 |
|
Oil pump motor capacity |
kW |
55 |
55 |
55 |
55 |
45 |
|
Voltage |
V |
1140/660 |
1140/660 |
1140/660 |
1140/660 |
1140/660 |
|
Dimensions（L×W×H） |
mm |
4980×1770×2350 |
4980×1770×2350 |
4980×1770×2350 |
4710×1741×2350 |
4080×1480×2100 |
|
Weight |
kg |
9000 |
8950 |
8900 |
7800 |
7000 |
|
Max. part dimensions（L×W×H） |
|
2238×882×1312 |
2238×882×1312 |
2238×882×1312 |
2238×882×1312 |
2058×882×1312 |
|
Max. part weight |
|
1422 |
1422 |
1422 |
1270 |
1270 |
