Electronic Control System for Back-hoe Loader
The electrical control system is the core of the electronic system of Back-hoe Loader, it is mainly responsible to keep the oil pump motor and the second conveyor motor and the system to work normally, including motor start and stop operation and protection when overload, phase failure, short circuit, leakage, etc.

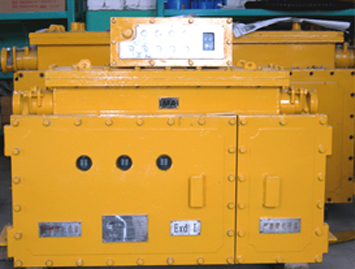

The entire electronic control system is mainly made from explosion-proof electrical control box and the "mining flameproof operation box", besides it also includes explosion-proof bell, the mining explosion-proof lamps, explosion-proof emergency stop buttons, gas disconnector, etc. The system structure is compact, small footprint, easy maintenance, and can be equipped with explosion-proof lighting (light emitting diode LED) which is independently developed by Shijiazhuang Coal Mining Machinery Co., Ltd. with high luminous efficiency (which is eight times that of incandescent), long life (5-10 million hours), good seismic performance, the lighting has applied for national patents.
Suitable working condition:
(1)ambient temperature:-5℃～+40℃；
(2)place away from dropping water
(3)Air pressure: 80kPa～110 kPa；
(4)Relative humidity:≤95%（ +25℃）；
(5) without gas which damage insulation or steam
(6) The tilt angle of mounting is not more than 16°
(7) Underground coal mine with gas or coal dust.
Type and specification
●Type: KX B2—55 / □ E
●Kind: flameproof for coal mine, ExdI.
●Specification
(1) Nominal voltage: three phase AC1140/660V/380V 50Hz；
(2) Nominal power: 60KW；
(3) Overall dimensions:1170×395×660( L×W×H )mm
Operation box
●Type CX B 2 - 36 E
●Specification
(1) type: flameproof for coal mine ExdI
(2) AC36V 300mA
(3) Dimensions: 160×290×400( L×W×H )mm
