It is suitable for coalfield, geological, hydro-geological, metal ferrous and non metal ferrous hole drilling engineering, also for drilling and exploration underground water resource, shallow petroleum, natural gas and geothermal.

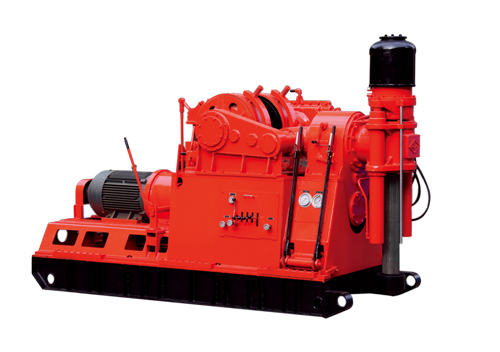

DZL-9/90 Characteristics:
1. With patent“ active drilling hydraulic spring clamp”(patent No. ZL20092 0254556.8), which is property right owned, convenient active drilling can be realized.
2. Hydraulic chuck adopting a two—way oil supply means and equipped with hydraulic. It has a powerful clamping force.
3. Vertical shaft with spline transmits larger torque and provides longevity.
4. Equipped with adjustable water brake, makes the landing of rods more smooth and safe when drilling deeply.
5. With transverse winch, wrong roping can be avoided; longevity of the rope can be acquired.
6. With belt type brake, more powerful braking force and longevity of brake belt can be provided.
7. It uses dual—gear pump, less power loss, lower oil temperature, more stable working condition.
8. Equipped with a hand—shaking oil pump, it can lift the drill up in order to avoid an underground accident when the power operating failed.
9. Low gravity center, a long traveling distance, a reliable fixation and a good stability in high speed drilling.
10.Its power may be motor or diesel and optional for customers.
|
Specification |
DZL-9/90
(1127) |
|
|
Drilling depth (m) |
(φ60common rod)2500 |
|
|
(φ71coring rid)2200 |
|
|
Revolution of gyrator |
Low speed (r/min) |
motor |
41 71 124 186 286 341 Reverse 46 |
|
|
High speed (r/min) |
141 244 425 638 921 1170 reverse 158 |
|
|
Max. torque (kN.m) |
9 |
|
|
Max. feeding force (kN) |
120 |
|
|
Max. hoisting force (kN) |
180 |
|
|
Vertical spindle diameter (mm) |
φ118 |
|
|
Stroke of turn plate (mm) |
900 |
|
|
Stroke of turn plate (mm) |
500 |
|
|
Hoisting capacity of winch (kN) |
20 |
|
Hoisting speed of winch (m/s) |
(Motor) 0.497 0.86 1.5 2.26 3.25 4.13 |
|
|
Inclination range of hole (°) |
0～360° |
|
|
Wire capacity of drum (m) |
(φ22mm)150 |
|
|
Power |
Motor Model and Power |
Y250M—4(1480r/min) |
55Kw |
|
|
Diesel Model and Power |
D4114ZG3B(2050r/min) |
95Kw |
|
|
Weight (kg) |
5970(with motor) |
|
|
Overall dimensions(L×W×H) (mm) |
3740×1634×2435 |
|
