Cab Lift Transport System

Introduction

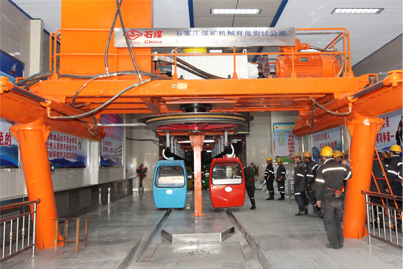

Cab Lift Transport System
The can lift transport system is a kind of person transport system developed to improve the comfort and safety of the miners, using the latest technology of touring cable car.
Suitable slope 0-35 °, the maximum traction 40kN, a maximum speed 1.2m / s, transport capacity 576 people / h.
● good appearance, ride comfort and safety;
●hydraulic tension drive, reliable traction
●single or double hanging cab to avoid the crew direct exposure to the tunnel air flow;
● Leading device is arranged to prevent cab swing;
● The system is equipped with monitoring devices along all way, enabling remote monitoring and operating room monitoring;
● monocular braced rope returning station, simple structure, easy installation
.

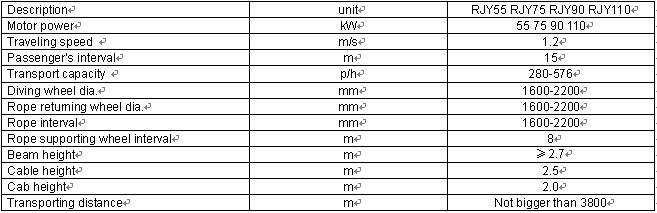

Specification
