Applications and features

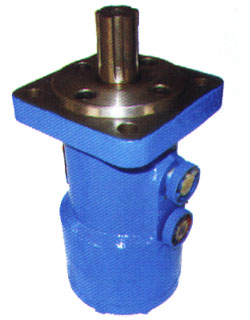

BMP-250 series cycloid hydraulic motor is with the features such as compact structure, small size, light weight, big torque, and good suitability etc. It is widely used on the hoisting, mining, construction, chemical, agriculuture, fishing machineries, etc.

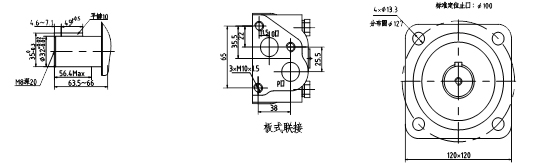

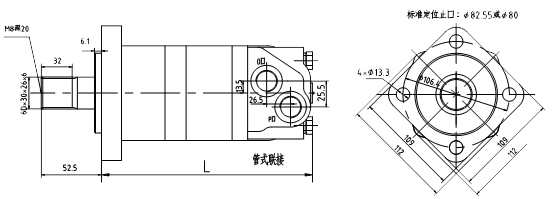

Dimensions
sions
Specification
|
Type |
Displacement(mL/r) |
Working pressure(MPa) |
Output torque(N.m) |
Rotation speed(r/min) |
|
Nominal |
Max. |
Nominal |
Nominal |
Max. |
|
BM-D250 |
250 |
12.5 |
16 |
400 |
260 |
320 |
