YMC Seriesa Cyloid Hydraulic Motor
Usage and features:
YMC series cycloid hydraulic motor is with the features such as compact structure, small size, light weight, big torque, and good suitability etc. It is widely used on the hoisting, mining, construction, chemical, agriculuture, fishing machineries, etc.

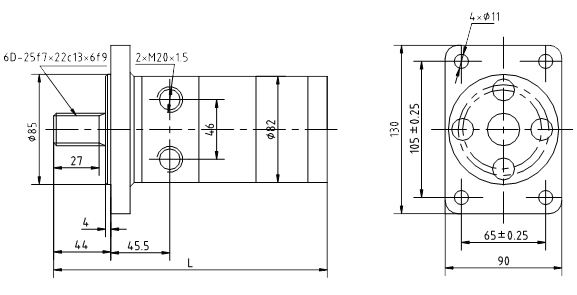

Dimensions
Specification
|
Type |
Displacement(mL/r) |
Nominal pressure(MPa) |
Nominal torque（N.m） |
Rotation Speed（r/min） |
Max, pressure（MPa） |
Max. torque（N.m） |
Overall dimensionL×b×h（mm） |
net weight（kg） |
|
YMC- 10 |
90 |
9 |
73 |
20-400 |
12 |
98 |
184×130×90 |
5.5 |
|
YMC-20 |
160 |
9 |
147 |
20-300 |
12 |
196 |
193.5×130×90 |
5.9 |
|
YMC-30 |
224 |
9 |
220 |
20-200 |
12 |
294 |
201.5×130×90 |
6.2 |
|
YMC-40 |
315 |
9 |
294 |
20-200 |
12 |
392 |
211.5×130×90 |
6.4 |
|
YMC-400 |
400 |
8 |
332 |
25-150 |
10 |
410 |
221.5×130×90 |
6.6 |
