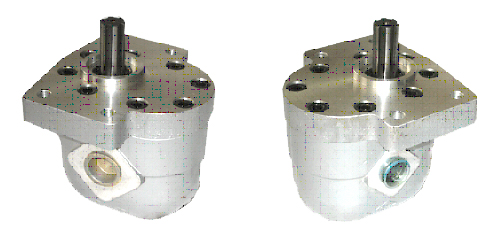

CB32B Gear Pump
Applications and features
CB32B gear pump is the power resource element of hydraulic system, the pumps applies high precision gear and high strength housing, floating liner and DU shaft sleeve, therefore the pumps is with advantages of simple structure, light weight, low noise, good reliability, etc. It is widely used in the hydraulic system of motor transport machinery, construction machinery, mining machinery, and agricultural machinery, etc.
Dimensions
Shaft type
Paralell sided spline straight key
Specification
|
Type |
Displacement（mL/r） |
Pressure（MPa） |
Rotation（r/min） |
in and out pipe |
L |
|
Nominal |
Max. |
Nominal |
Max. |
in |
out |
single |
spline |
|
CB32B |
23 |
16 |
20 |
2000 |
2500 |
G7/8＂ |
G3/4＂ |
30 |
38 |
