Applications and features
CB-E is middle or high pressure gear pump and is the power resource element of hydraulic system, the pumps applies high precision gear and high strength housing, floating liner and DU shaft sleeve, therefore the pumps is with advantages of simple structure, light weight, low noise, good reliability, etc. It is mainly designed for the fork, also widely used in the hydraulic system of motor transport machinery, construction machinery, mining machinery, and agricultural machinery, etc.
Specification
|
Type |
Displacement（mL/r） |
Pressure（MPa） |
Rotation（r/min） |
volume efficiency% |
|
Nominal |
Max. |
Nominal |
Max. |
|
CB-E18 |
18 |
16 |
20 |
1500 |
2000 |
≥90 |
|
CB-E25 |
25 |
|
CB-E40 |
40 |
Dimensions

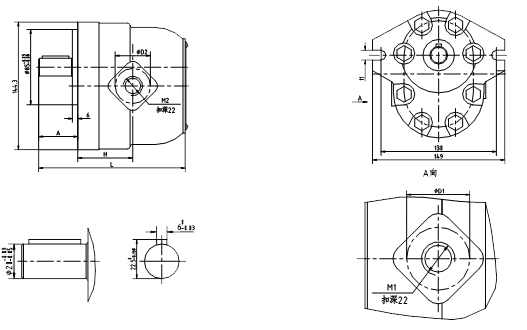

Profile dimensions
|
Type |
L |
A |
H |
D1 |
D2 |
M1 |
M2 |
|
CB-E18 |
163.5 |
41 |
62 |
50.8 |
39.7 |
M27×2 |
M22×1.5 |
|
CB-E25 |
170 |
41 |
68 |
50.8 |
39.7 |
M33×2 |
M27×2 |
|
CB-E40 |
183 |
44 |
68 |
50.8 |
39.7 |
M33×2 |
M27×2 |
