The old roadway must be repaire periodly to prevent roof fall, rib spalling or floor heave.

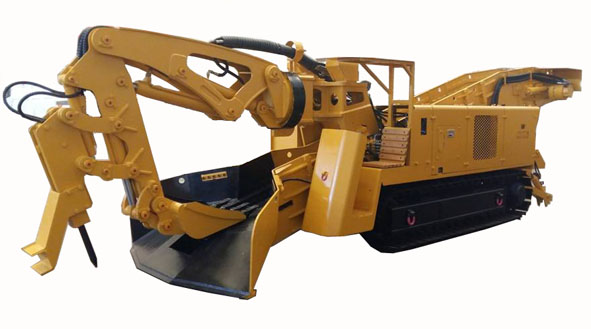

WPZ-55/400 roadway maintenance machine is a multi-function maintenance and trim equipment, the wokring boom can turn ±180 degrees along the center line of the body, with the functions of breaking, digging, loading, trimming and lifting the small material, can work on the roof and floor as well as the rib.
A scraper conveyor is equipped to the WPZ-55/400, the breaking hammer and the gathering bucket is aseembled on the working boom, easy to make the breaking and loading.
Hydraulic roof bolter and hydraulic scissors can be mounted on the maintenance machine
|
Model |
WPZ-55/400 |
|
Transport capacity (m3/h) |
150 |
|
Excavation width (mm) |
5800 |
|
Excavation height (mm) |
5100 |
|
Excavation depth (mm) |
850 |
|
Loading height (mm) |
1800 |
|
Hammer impact energy (j) |
400 |
|
Ground clearance (mm) |
300 |
|
Inclination (°) |
32 |
|
Motor power (kW) |
55 |
|
Travelling speed (m/s) |
0~10 |
|
Average ground pressure (MPa) |
＜0.1 |
|
Weight (kg) |
16000 |
|
Overall dimensions (mm) |
7125×1900×2140 |
