Introduction

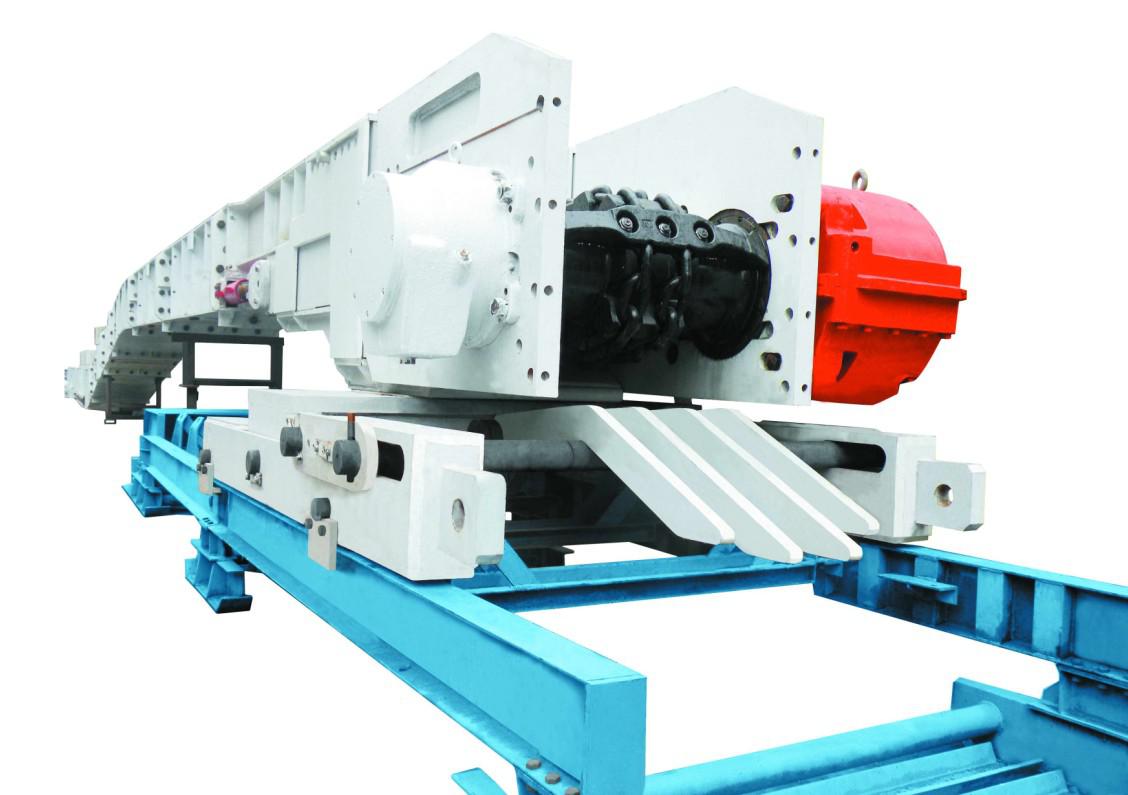

The reversing loader works together with the armored conveyor, its function is to lift and disload the coal from the conveyor to the belt conveyor, the coal will be broken by the crusher firstly.

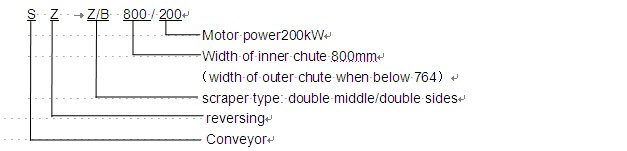

Meaning of model
Specification
|
Model |
Length (m) |
Transport capacity
(t/h) |
Chain speed
(m/s) |
Chain
(mm) |
Motor power
(kW) |
Reducer model |
Chute size
（L×Inner W×H） |
Move type |
|
|
|
630 series |
SZB630/40 |
45 |
250 |
0.868 |
φ18×64-C |
40 |
JS40 |
1500×630×640 |
|
|
|
SZB630/2×40 |
45 |
350 |
0.868 |
φ18×64-C |
2×40 |
JS40 |
1500×630×640 |
|
|
|
SZB630/75 |
30 |
350 |
0.868 |
φ18×64 |
75 |
JS75 |
1500×630×450 |
|
|
|
SZB630/90 |
30 |
400 |
0.868 |
φ18×64 |
90 |
JS90 |
1500×630×450 |
|
|
|
SZZ630/110 |
45 |
500 |
1.26 |
φ26×92-C |
110 |
JS110 |
1500×590×510 |
|
|
|
SZZ630/132 |
45 |
500 |
1.26 |
φ26×92-C |
132 |
JS132 |
1500×590×510 |
|
|
|
730
series |
SZZ730/110 |
45 |
600 |
1.1 |
φ26×92-C |
110 |
JS110 |
1500×680×800 |
|
|
|
SZZ730/132 |
50 |
700 |
1.33 |
φ26×92-C |
132 |
JS132 |
1500×680×800 |
|
|
|
SZZ730/160 |
45 |
800 |
1.33 |
φ26×92-C |
160 |
JS160 |
1500×680×800 |
|
|
|
SZZ730/200 |
50 |
800 |
1.33 |
φ26×92-C |
200 |
JS200 |
1500×680×800 |
|
|
|
764 series |
SZZ764/110 |
50 |
600 |
1.3 |
φ26×92-C |
110 |
JS110 |
1500×724×800 |
Walk self moving |
|
|
SZZ764/132 |
50 |
900 |
1.1 |
φ26×92-C |
132 |
JS132 |
1500×724×800 |
Walk self moving |
|
|
SZZ764/160 |
50 |
1000 |
1.3 |
φ26×92-C |
160 |
JS160 |
1500×724×800 |
Walk self moving |
|
|
SZZ764/200 |
50 |
1000 |
1.33 |
φ26×92-C |
200 |
JS200 |
1500×724×800 |
Walk self moving |
|
|
800 series |
SZZ800/160 |
50 |
1500 |
1.83 |
φ34×126-C |
160 |
JS160 |
1500×800×1110 |
Walk self moving |
|
|
SZZ800/200 |
50 |
1600 |
1.86 |
φ34×126-C |
200 |
JS200 |
1500×800×1110 |
Walk self moving |
|
|
1800 |
1.83 |
φ34×126 |
1500×800×1110 |
|
|
SZZ800/250 |
50 |
1800 |
1.83 |
φ34×126-C |
250 |
JS250 |
1500×800×1110 |
Walk self moving |
|
|
SZZ800/315 |
50 |
1800 |
1.83 |
φ34×126-C |
315 |
JS315 |
1500×800×1110 |
Walk self moving |
|
|
900 series |
SZZ900/200 |
50 |
1600 |
1.83 |
φ34×126-C |
200 |
JS200 |
1500×900×1110 |
|
|
|
SZZ900/250 |
50 |
1600 |
1.86 |
φ34×126-C |
250 |
JS250 |
1500×900×1110 |
|
|
|
SZZ900/315 |
50 |
1800 |
1.83 |
φ34×126-C |
315 |
JS315 |
1500×900×1110 |
|
|
|
1000
series |
SZZ1000/315 |
50 |
2000 |
1.5 |
φ34×126-C |
315 |
JS315 |
1500×1000×1110 |
|
|
|
SZZ1000/375 |
50 |
2000 |
1.49 |
φ34×126-C |
375 |
JS375 |
1500×1000×1110 |
|
|
|
SZZ1000/400 |
50 |
2000 |
1.56 |
φ34×126-C |
400 |
JS400 |
1500×1000×1110 |
|
|
